Monthly Deals DSP-35kw Air Cooled Induction Heating Machine for Shrint Fit

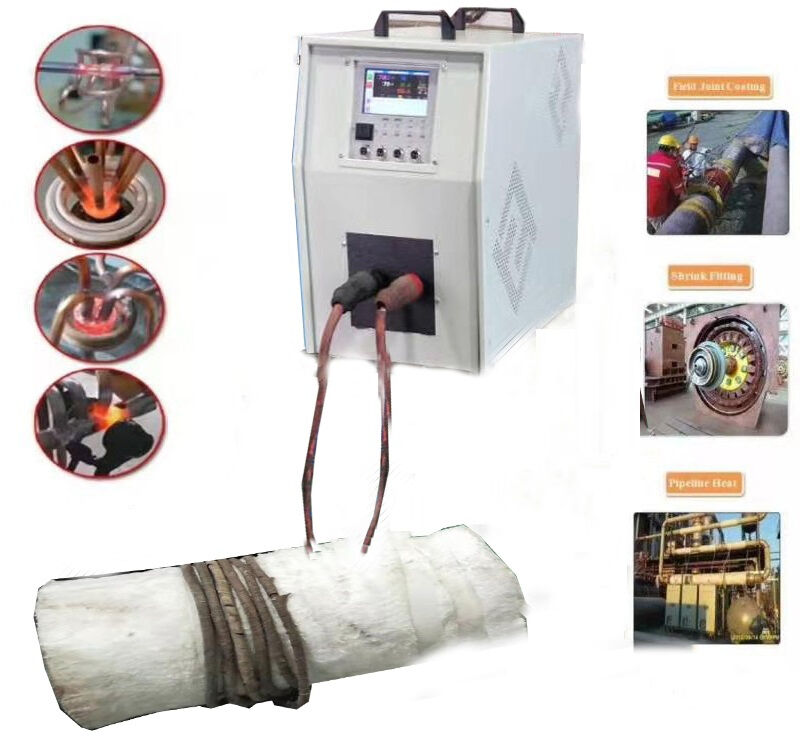

Digital Type Induction Heating Machine (DSP-35KW)






Advantage:
1 More than 21 years experience, stable and goods performance
2 CE certificated
3  Digital Type
4 8 Section heating


Main Characteristic:
1 Front Panel use the LCD Touch Screen, Key and Power Switch, all digital
display, can use Switch Signal( Electrical frequency signal) to control the
machine start and stop, and control the power via PLC.
Visual Human-computer Interface makes the operator feel more intimate and
intuitive. Because of its abundant industrial interfaces, it has stronger and
more flexible matching ability with robots, various automation equipment and
remoe control (unmanned) devices.
2 Induction Heating Machine have remote control function and adopt digital
circuit control, power regulation can be adjusted from 0% to 100% resolution,
and digital PID temperature control module can be configured to set the target
temperature of workpiece (infrared temperature measurement or
thermocouple temperature measurement) automatically. The accuracy of
temperature control is + 1'C for power regulation in heating process.
3 There are 5 working model, manual, timer, temperature, Constant
temperarure, section heating model.
1) Manual, On and stop in the Switch
2 ) Timer, setting heating time, after reach the heating time, then stop.
Fixed Temperature: Set the heating temperature that we need it, when the
reach to the temperature that we need it, then stop the machine.
3) Constant Temperature: Adjust the heating power automatic to keep the
same temperature to the workpiece.
4) Section Heating model, there are 8(S1-S8) options, each section can set
the heating power, timer, temperature or constant temperarture, temperature
or constant temperature just can choose any one. Power as 0 means no need
to heat, put the paramater that you need to set, if not choose that function
then show"--
5) There are 9 (P1-P9)programs, which can memorize 9 different workpiece in
the machine, and select programs by clicking P(P1-P9). Can save much time
if you have many workpiece in one machine, you can choose the programs
(P1-P9) to fast working
